Polarization prism with total internal reflection#
This example shows how to perform and subsequently plot a polarization analysis in a prisim with total internal reflection. This notebook depends on the example file “Prism using total internal reflection.zmx“, which is also supplied.
Included functionalities#
Sequential mode:
Usage of
zospy.analyses.polarization.transmission()to perform a polarization transmission analysis.Usage of
zospy.analyses.polarization.polarization_pupil_mapto calculate the polarization pupil map.
Warranty and liability#
The examples are provided ‘as is’. There is no warranty and rights cannot be derived from them, as is also stated in the general license of this repository.
Import dependencies#
[1]:
from warnings import warn
import matplotlib.pyplot as plt
import numpy as np
import zospy as zp
Input values#
[2]:
# Input Jones Vector
jx = 1
jy = 1
x_phase = 0
y_phase = 0
Connect to OpticStudio in standalone mode#
[3]:
zos = zp.ZOS()
oss = zos.connect(mode="standalone")
Load the optical system#
Load the example file ‘Prism using total internal reflection’.
[4]:
# OpticStudio requires absolute paths, but ZOSPy can handle relative paths
oss.load("Prism using total internal reflection.zmx")

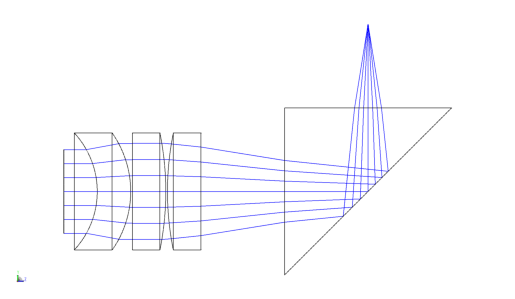

Render the model#
To render the model, we use the zospy.analyses.systemviewers.viewer_3d function. For this system, zospy.analyses.systemviewers.cross_section cannot be used because the system is not rotationally symmetric.
[5]:
draw3d = zp.analyses.systemviewers.viewer_3d(
oss, surface_line_thickness="Thick", ray_line_thickness="Thick", number_of_rays=7, hide_x_bars=True
)
if oss._ZOS.version < (24, 1, 0):
warn("Exporting the 3D viewer data is not available for this version of OpticStudio.")
else:
plt.imshow(draw3d.Data)
plt.axis("off")
Transmission analysis#
Run the Transmission analysis from zospy.analyses.polarization.transmission.
[6]:
return_transmission = zp.analyses.polarization.transmission(
oss, jx=jx, jy=jy, x_phase=x_phase, y_phase=y_phase, sampling="64x64"
)
print(
"Field position Transmission",
f"{return_transmission.Data.FieldPos:<18} {return_transmission.Data.TotalTransmission * 100}%",
sep="\n",
)
Field position Transmission
0.0 64.1754205%
Get a polarization map using zospy.analyses.polarization.polarization_pupil_map
[7]:
result = zp.analyses.polarization.polarization_pupil_map(
oss, jx=jx, jy=jy, x_phase=x_phase, y_phase=y_phase, sampling="17x17"
)
df = result.Data.Table
print(df)
Px Py Ex Ey Intensity Phase(Deg) Orientation
0 -1.000 0.000 0.478226 0.673308 0.682044 137.096154 122.267525
1 -0.875 -0.375 0.505769 0.668042 0.702082 134.067624 123.969140
2 -0.875 -0.250 0.501666 0.666814 0.696309 -225.063934 123.893391
3 -0.875 -0.125 0.496899 0.665856 0.690273 -223.867939 123.809086
4 -0.875 0.000 0.491385 0.665160 0.683897 -222.250933 123.722118
.. ... ... ... ... ... ... ...
192 0.875 0.000 0.672867 0.476981 0.680261 -222.668754 147.755937
193 0.875 0.125 0.678455 0.475828 0.686713 -220.284484 147.700755
194 0.875 0.250 0.684247 0.474248 0.693105 -217.117400 147.589012
195 0.875 0.375 0.690386 0.472140 0.699549 147.216066 147.420181
196 1.000 0.000 0.683282 0.457999 0.676638 136.423377 149.777610
[197 rows x 7 columns]

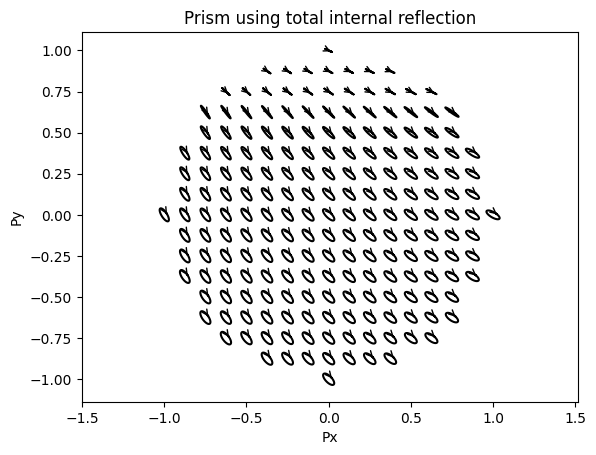

Plot the pupil map
[8]:
xy_length = len(np.unique(df["Px"]))
for i in range(len(df)):
# E-field coordinates
phi = np.linspace(0, 2 * np.pi) - np.pi / 3
Ex = np.real(df["Ex"][i] * np.exp(1j * phi)) / xy_length + df["Px"].iloc[i]
Ey = (
np.real(df["Ey"].iloc[i] * np.exp(1j * phi + 1j * df["Phase(Deg)"].iloc[i] * np.pi / 180)) / xy_length
+ df["Py"].iloc[i]
)
# Plot E-field trajectories
line = plt.plot(Ex, Ey, "k")
# Add arrows
line[0].axes.annotate(
"",
xytext=(Ex[0], Ey[0]),
xy=(Ex[1], Ey[1]),
arrowprops=dict(arrowstyle="->", color="k"),
)
plt.xlabel("Px")
plt.ylabel("Py")
plt.axis("equal")
plt.title("Prism using total internal reflection")
[8]:
Text(0.5, 1.0, 'Prism using total internal reflection')
