Raytracing analyses on a Double Gauss lens#

This example shows how to determine, perform and subsequently plot single ray traces and ray fan analyses in a Double Gauss lens. The code depends on the example file “Double Gauss 28 degree field.zmx”, which is provided by OpticStudio. Visualisations are created with Seaborn.

Included functionalities#

  • Sequential mode:

    • Usage of zospy.analyses.raysandspots.SingleRayTrace to perform a single ray trace.

    • Usage of zospy.analyses.raysandspots.RayFan to perfrom a ray fan analysis.

Warranty and liability#

The examples are provided ‘as is’. There is no warranty and rights cannot be derived from them, as is also stated in the general license of this repository.

Import dependencies#

[1]:

from pathlib import Path

import matplotlib.pyplot as plt
import numpy as np
import seaborn as sns

import zospy as zp

Input variables

[2]:

# Number of rays per field
number_of_rays = 3

# Field coordinates, as angles w.r.t. the entrance pupil
fields = [0, 10 / 14, 1]

# Plot colors for fields and wavelengths
colors = ["b", "g", "r"]

Connect to OpticStudio in standalone mode. Analyses in standalone mode are significantly faster than in extension mode, because the user interface does not need to be updated.

[3]:

zos = zp.ZOS()
oss = zos.connect(mode="standalone")

Load the Double Gauss 28 degree field.zmx example file provided by OpticStudio.

[4]:

system_file = Path(zos.Application.SamplesDir) / "Sequential/Objectives/Double Gauss 28 degree field.zmx"
oss.load(system_file)

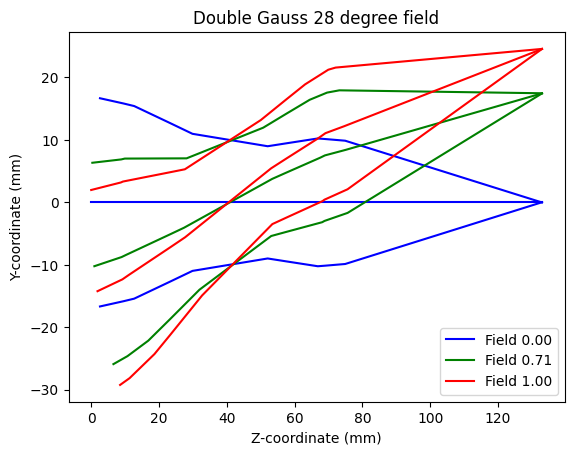

Single raytrace analysis#

Perform a single raytrace analysis for every field and plot the results.

[5]:

# Loop through field coordinates
for i, hy in enumerate(fields):
    # Loop through pupil coordinates
    for py in np.linspace(-1, 1, number_of_rays):
        # Run single ray trace
        raytrace_result = zp.analyses.raysandspots.SingleRayTrace(
            hy=hy, py=py, wavelength=2, global_coordinates=True, field=0
        ).run(oss)

        # Extract real ray data
        rays = raytrace_result.data.real_ray_trace_data

        sns.lineplot(
            rays,
            x="Z-coordinate",
            y="Y-coordinate",
            color=colors[i],
            label=f"Field {hy:.2f}" if py == -1 else None,
        )

plt.legend()
plt.xlabel("Z-coordinate (mm)")
plt.ylabel("Y-coordinate (mm)")
plt.title("Double Gauss 28 degree field")

D:\code\zemax\zospy\zospy\analyses\raysandspots\single_ray_trace.py:36: UserWarning: Header and row length mismatch. Empty columns will be filled with NaN.
  warn("Header and row length mismatch. Empty columns will be filled with NaN.")
D:\code\zemax\zospy\zospy\analyses\raysandspots\single_ray_trace.py:36: UserWarning: Header and row length mismatch. Empty columns will be filled with NaN.
  warn("Header and row length mismatch. Empty columns will be filled with NaN.")
D:\code\zemax\zospy\zospy\analyses\raysandspots\single_ray_trace.py:36: UserWarning: Header and row length mismatch. Empty columns will be filled with NaN.
  warn("Header and row length mismatch. Empty columns will be filled with NaN.")
D:\code\zemax\zospy\zospy\analyses\raysandspots\single_ray_trace.py:36: UserWarning: Header and row length mismatch. Empty columns will be filled with NaN.
  warn("Header and row length mismatch. Empty columns will be filled with NaN.")
D:\code\zemax\zospy\zospy\analyses\raysandspots\single_ray_trace.py:36: UserWarning: Header and row length mismatch. Empty columns will be filled with NaN.
  warn("Header and row length mismatch. Empty columns will be filled with NaN.")
D:\code\zemax\zospy\zospy\analyses\raysandspots\single_ray_trace.py:36: UserWarning: Header and row length mismatch. Empty columns will be filled with NaN.
  warn("Header and row length mismatch. Empty columns will be filled with NaN.")
D:\code\zemax\zospy\zospy\analyses\raysandspots\single_ray_trace.py:36: UserWarning: Header and row length mismatch. Empty columns will be filled with NaN.
  warn("Header and row length mismatch. Empty columns will be filled with NaN.")
D:\code\zemax\zospy\zospy\analyses\raysandspots\single_ray_trace.py:36: UserWarning: Header and row length mismatch. Empty columns will be filled with NaN.
  warn("Header and row length mismatch. Empty columns will be filled with NaN.")
D:\code\zemax\zospy\zospy\analyses\raysandspots\single_ray_trace.py:36: UserWarning: Header and row length mismatch. Empty columns will be filled with NaN.
  warn("Header and row length mismatch. Empty columns will be filled with NaN.")

[5]:

Text(0.5, 1.0, 'Double Gauss 28 degree field')
../../_images/examples_Ray_trace_Double_Gauss_raytrace_double_gauss_10_2.png

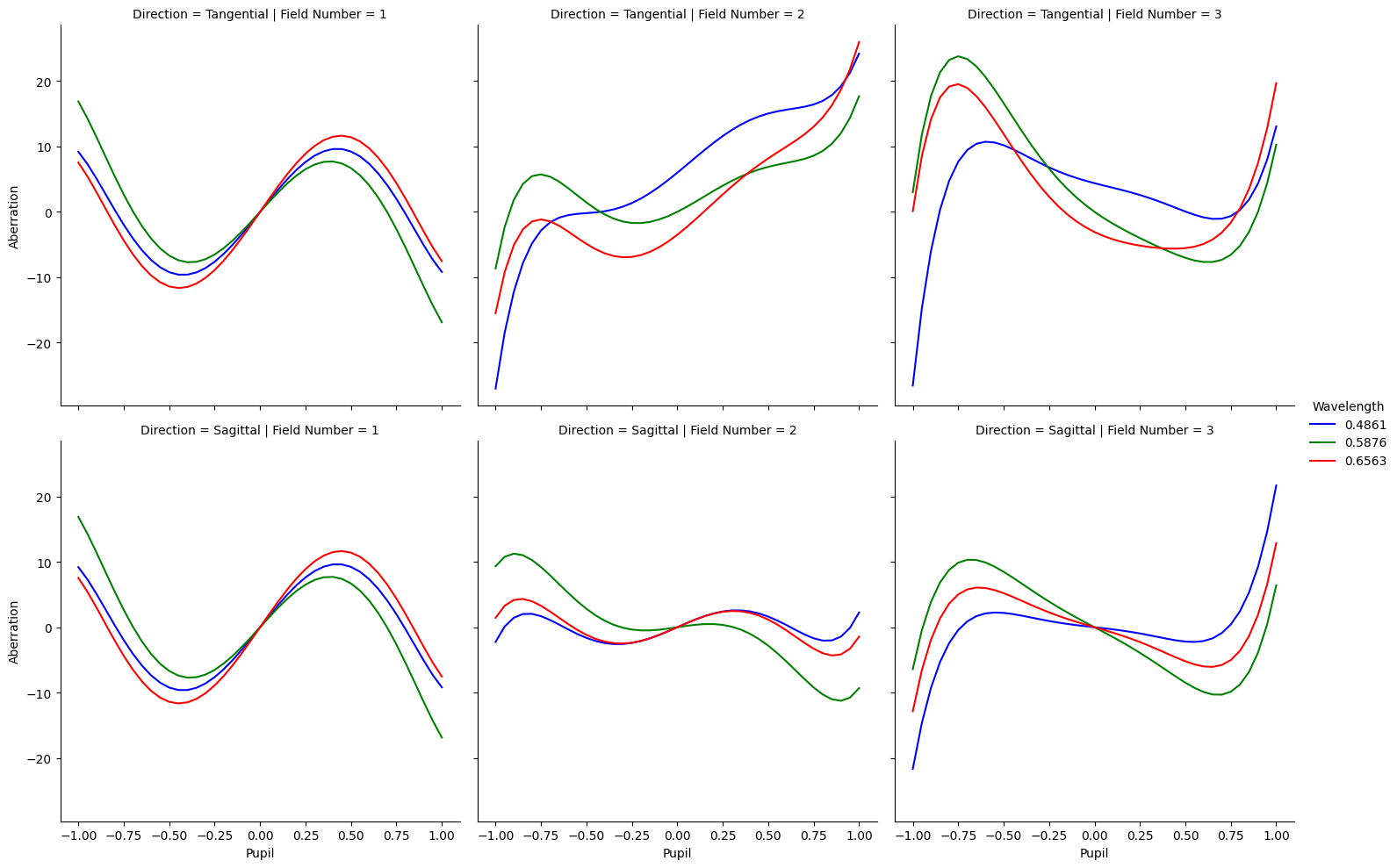

Ray fan analysis#

Run a ray fan analysis and plot the results.

[6]:

ray_fan_result = zp.analyses.raysandspots.RayFan(number_of_rays=20, wavelength="All", field="All").run(oss)

sns.relplot(
    ray_fan_result.data.to_dataframe(),
    x="Pupil",
    y="Aberration",
    row="Direction",
    col="Field Number",
    hue="Wavelength",
    kind="line",
    palette=colors,
)

[6]:

<seaborn.axisgrid.FacetGrid at 0x1d36844ea20>
../../_images/examples_Ray_trace_Double_Gauss_raytrace_double_gauss_12_1.png
