Connecting to OpticStudio#

To use ZOSPy, you need to connect to OpticStudio. This can be done in two ways:

  1. Standalone mode: a new, invisible instance of OpticStudio is started and closed when the script is finished. This is the default mode used by ZOSPy. It is also the most performant option, because updating the GUI appears to significantly slow down simulations.

  2. Extension mode: the script connects to an already running instance of OpticStudio. To be able to connect in extension mode, the ‘Interactive Extension’ mode must be activated in OpticStudio. This is useful for debugging, or when you want to see the simulation progress in the GUI.

Connecting in standalone mode#

To connect to OpticStudio in standalone mode, use the following code:

import zospy as zp

# Initialize the ZOS-API connection
zos = zp.ZOS()

# Connect the ZOS-API to OpticStudio in standalone mode
oss = zos.connect()

# Alternatively, the standalone mode can be explicitly specified:
oss = zos.connect("standalone")

Connecting in extension mode#

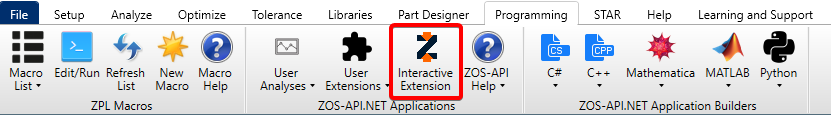

To connect to OpticStudio in extension mode, first enable the ‘Interactive Extension’ mode in OpticStudio under Programming > Interactive Extension.

Interactive Extension

Then, use the following code to connect to OpticStudio in extension mode:

import zospy as zp

# Initialize the ZOS-API connection
zos = zp.ZOS()

# Connect the ZOS-API to OpticStudio in standalone mode
oss = zos.connect("extension")

Connecting to a specific version of OpticStudio#

By default, ZOSPy retrieves the path to the OpticStudio installation directory from the Windows registry. If you have multiple versions of OpticStudio installed, you can connect to a specific version by specifying the path to the OpticStudio executable:

import zospy as zp

zos = zp.ZOS(opticstudio_directory="path/to/opticstudio")

Note

You need to specify the path to the OpticStudio directory, not the path to the executable itself. ZOSPy uses this path to load the ZOS-API assemblies.

Difference between ZOS and OpticStudioSystem#

As shown above, the connection to OpticStudio is managed through two objects:

The difference between these two classes is a common cause of confusion. Although it is theoretically possible to combine these two classes, this would negatively impact the user experience and make some more advanced use cases impossible.

ZOS manages the connection with the ZOS-API#

The ZOS-API can be thought of as a library that provides access to OpticStudio’s functionality. Loading this library itself does not establish a connection to OpticStudio. The ZOS class is responsible for loading the ZOS-API assemblies that allow communication with OpticStudio. As you can load the ZOS-API only once, the ZOS class is a singleton class which can only be instantiated once. Creating a second ZOS instance will raise a warning, and return the existing instance:

>>> import zospy as zp
>>> zos = zp.ZOS()
>>> zos2 = zp.ZOS()
UserWarning: Only a single instance of ZOS can exist at any time. Returning existing instance.
>>> zos is zos2
True

This behavior is similar to the behavior of the ZOS-API itself, which returns the existing ZOSAPI_Connection instance when creating a new connection. However, the ZOS-API will do this silently, while ZOSPy raises a warning.

OpticStudioSystem manages the optical system#

Connecting to OpticStudio with zos.connect returns an OpticStudioSystem object. The OpticStudioSystem class is responsible for managing the optical system in OpticStudio. Although you can connect to only one instance of OpticStudio at a time, you can create multiple optical systems in the same instance. It is thus possible to have multiple OpticStudioSystem objects, each managing a different optical system:

import zospy as zp

zos = zp.ZOS()
oss_1 = zos.connect()  # Returns the primary system
oss_2 = zos.create_new_system()  # Creates a new system and returns it

Reconnecting to OpticStudio#

As explained above, you only need to instantiate the ZOS class once. To reconnect to OpticStudio, you can simply call zos.connect again:

import zospy as zp

zos = zp.ZOS()

# Connect to OpticStudio
oss = zos.connect()

# Do work ...

# Disconnect
zos.disconnect()

# Reconnect
oss = zos.connect()

Note that reconnecting to OpticStudio is only possible if the connection was closed properly. zos.connect will raise an exception when there is already an active connection. If you want to access the optical systems in an existing OpticStudio instance, you can use zos.get_primary_system and zos.get_system.
